JavaScript版本行情收集器

Author: 雨幕(youquant), Created: 2021-03-29 10:51:07, Updated: 2023-11-27 20:44:58


JavaScript版本行情收集器

最近,优宽量化交易平台支持了数据库接口,所以使用JavaScript语言也可以很方便的实现一个K线行情数据收集器了。 有了需求,马上行动~

构建JavaScript版本行情收集器之前,我们先来熟悉优宽的数据库接口DBExec

DBExec 函数

先熟悉以下几种操作:

  • 创建表
  • 向表中写入数据
  • 查询表中数据
function main() {
    /* 创建表
    var strSql = [
        "CREATE TABLE RECORDS_MIN1(",
        "TS INT PRIMARY KEY NOT NULL,",
        "HIGH REAL NOT NULL,",
        "OPEN REAL NOT NULL,",
        "LOW REAL NOT NULL,",
        "CLOSE REAL NOT NULL,",
        "VOLUME REAL NOT NULL)"
    ].join("")
    // DBExec函数返回:{"rowsAffected":1,"lastInsertId":18}
    */

    /* 表写入数据
    // INSERT INTO COMPANY (ID,NAME,AGE,ADDRESS,SALARY)
    // VALUES (1, 'Paul', 32, 'California', 20000.00 );
    var strSql = [
        "INSERT INTO RECORDS_MIN1 (TS, HIGH, OPEN, LOW, CLOSE, VOLUME)",
        "VALUES (111111, 111.11, 111.12, 111.13, 111.14, 111.16);"
    ].join("")
    // DBExec函数返回:{"rowsAffected":1,"lastInsertId":1}
    */

    /* 查询表中数据
    // SELECT * FROM RECORDS_MIN1;
    var strSql = ["SELECT * FROM RECORDS_MIN1;"].join("")
    // DBExec函数返回:{"columns":["TS","HIGH","OPEN","LOW","CLOSE","VOLUME"],"values":[[111111,111.11,111.12,111.13,111.14,111.16]]}
    */

    var ret = DBExec(strSql)    // 执行SQL语句
    Log(ret)
}

设计行情收集器

利用优宽的数据库接口DBExec可以实现收集交易所的K线数据。 例如有些策略基于很长的K线数据计算指标,很不容易收集数据让K线数据长度足够计算指标,但是遇到策略程序设计不完善实盘异常停止、临时调整代码、临时调整策略参数等需要重启实盘的场景。此时实盘一旦重启收集的数据就没有了(程序变量中保存)。所以使用数据库接口,保存收集的行情数据是一个非常好的解决办法。

我们的需求也十分简单:

  • 程序轮询获取行情
  • 判断BAR更新,将完成的BAR数据写入数据库表保存。
  • 查询数据库中表的数据
  • 本例子为了展示数据,增加了画图(使用画线类库),通过策略交互按钮,更新K线图表。
  • 删除数据库表
  • 初始化,重新创建数据库表,写入最新的数据。

简单的数据收集器源码:

var collecter = {}
collecter.init = function(tableName) {
	this.preBarTS = 0
	this.tableName = tableName
    this.tableAvaliable = false
    // 检测tableName表
    if (typeof(tableName) == "undefined" || typeof(tableName) != "string") {
    	Log(tableName)
        throw "tableName error!"
    }

    // SELECT * FROM RECORDS_MIN1 LIMIT 1
    var strSql = "SELECT * FROM " + tableName + " LIMIT 1"
    var ret = DBExec(strSql)
    if (!ret) {
    	// 表不存在,创建表
        Log("尝试读取表", this.tableName, "的数据,读取失败,开始创建表", this.tableName)
    	var strSql = [
            "CREATE TABLE " + tableName + "(",
            "TS INT PRIMARY KEY NOT NULL,",
            "HIGH REAL NOT NULL,",
            "OPEN REAL NOT NULL,",
            "LOW REAL NOT NULL,",
            "CLOSE REAL NOT NULL,",
            "VOLUME REAL NOT NULL)"
        ].join("")
        ret = DBExec(strSql)
        if (!ret) {
        	throw "创建" + tableName + "表失败!"
        }
        Log("创建", tableName, "表", ret)
    }
    Log(this.tableName, ret)
    this.tableAvaliable = true
}

collecter.run = function(records) {
    if (!this.tableAvaliable) {
        return
    }
	var len = records.length
	var lastBar = records[len - 1]
	var beginBar = records[0]
	var ret = null
    if (this.preBarTS == 0) {
        // 初始
        /*
		DELETE FROM table_name WHERE [condition];
        */
        var strSql = "DELETE FROM " + this.tableName + " WHERE TS >= " + beginBar.Time + ";"
        ret = DBExec(strSql)
        Log("删除与当前记录重复部分", ret)

        // 写入
        ret = DBExec("BEGIN")
        Log("BEGIN:", ret)
        for (var i = 0 ; i < len - 1 ; i++) {
        	var strSql = [
                "INSERT INTO " + this.tableName + " (TS, HIGH, OPEN, LOW, CLOSE, VOLUME) ",
                `VALUES (${records[i].Time}, ${records[i].High}, ${records[i].Open}, ${records[i].Low}, ${records[i].Close}, ${records[i].Volume});`
            ].join("")
            DBExec(strSql)
        }
        ret = DBExec("COMMIT")
        Log("COMMIT:", ret)
        this.preBarTS = lastBar.Time
    } else if(this.preBarTS != lastBar.Time) {
        // 更新
        var strSql = [
            "INSERT INTO " + this.tableName + " (TS, HIGH, OPEN, LOW, CLOSE, VOLUME) ",
            `VALUES (${records[len-2].Time}, ${records[len-2].High}, ${records[len-2].Open}, ${records[len-2].Low}, ${records[len-2].Close}, ${records[len-2].Volume});`
        ].join("")
        ret = DBExec(strSql)
        Log("INSERT:", ret)
        this.preBarTS = lastBar.Time
    }
}

collecter.getRecords = function() {
	// 读取数据库
    var strSql = "SELECT * FROM " + this.tableName + ";"
    var ret = DBExec(strSql)
    // Log("SELECT * FROM .. :", ret)
    // SELECT * FROM .. : {"columns":["TS","HIGH","OPEN","LOW","CLOSE","VOLUME"],"values":[[1616110200000,58085.9,57716.2,57664.3,57757.6,24.216], ...]}
    var arr = ret.values
    var r = []
    for (var i = 0 ; i < arr.length ; i++) {
        r.push({
        	Time : arr[i][0],
        	High : arr[i][1],
        	Open : arr[i][2],
        	Low : arr[i][3],
        	Close : arr[i][4],
        	Volume : arr[i][5]
        })
    }
    return r
}

collecter.deleteTable = function() {
    // DROP TABLE database_name.table_name;
    var strSql = "DROP TABLE " + this.tableName
    var ret = DBExec(strSql)
    if (!ret) {
        Log("删除表", this.tableName, "失败:", ret)
    } else {
        Log("删除表", this.tableName, " DROP TABLE:", ret)
        this.tableAvaliable = false
    }
}

function main() {
	collecter.init(tableName)
    while(true) {
    	var r = _C(exchange.GetRecords)
        // records tbl
        var rTbl = {
            type : "table",
            title : "数据",
            cols : ["strTime", "Time", "High", "Open", "Low", "Close", "Volume"],
            rows : []
        }
        var arrR = []
        if (collecter.tableAvaliable) {
            arrR = collecter.getRecords()
        }
        for (var i = arrR.length - 1; (i > arrR.length - 1 - 9) && (i >= 0); i--) {
            var bar = arrR[i]
            rTbl.rows.push([_D(bar.Time), bar.Time, bar.High, bar.Open, bar.Low, bar.Close, bar.Volume])
        }
    	LogStatus(_D(), "获取的K线数据长度:", arrR.length, ", collecter.tableAvaliable:", collecter.tableAvaliable, "\n",
            "`" + JSON.stringify(rTbl) + "`")
    	collecter.run(r)

    	// 交互测试
    	var cmd = GetCommand()
        if(cmd) {
            // 处理交互
            Log("交互命令:", cmd)
            var arr = cmd.split(":")
            // 从数据库中读取K线数据,刷新图表
            if(arr[0] == "refreshRecords") {
                if (collecter.tableAvaliable) {
                    var records = collecter.getRecords()
                    $.PlotRecords(records, collecter.tableName)   // 使用画线类库画图
                } else {
                    Log("对应的数据库表不存在 collecter.tableAvaliable:", collecter.tableAvaliable)
                }
            } else if (arr[0] == "deleteBDTable") {     // 删除数据库表
                collecter.deleteTable()
            } else if (arr[0] == "initCollecter") {     // 初始化收集器
                Log("初始化收集器")
                collecter.init(tableName)
            }
        }
    	Sleep(5000)
    }
}

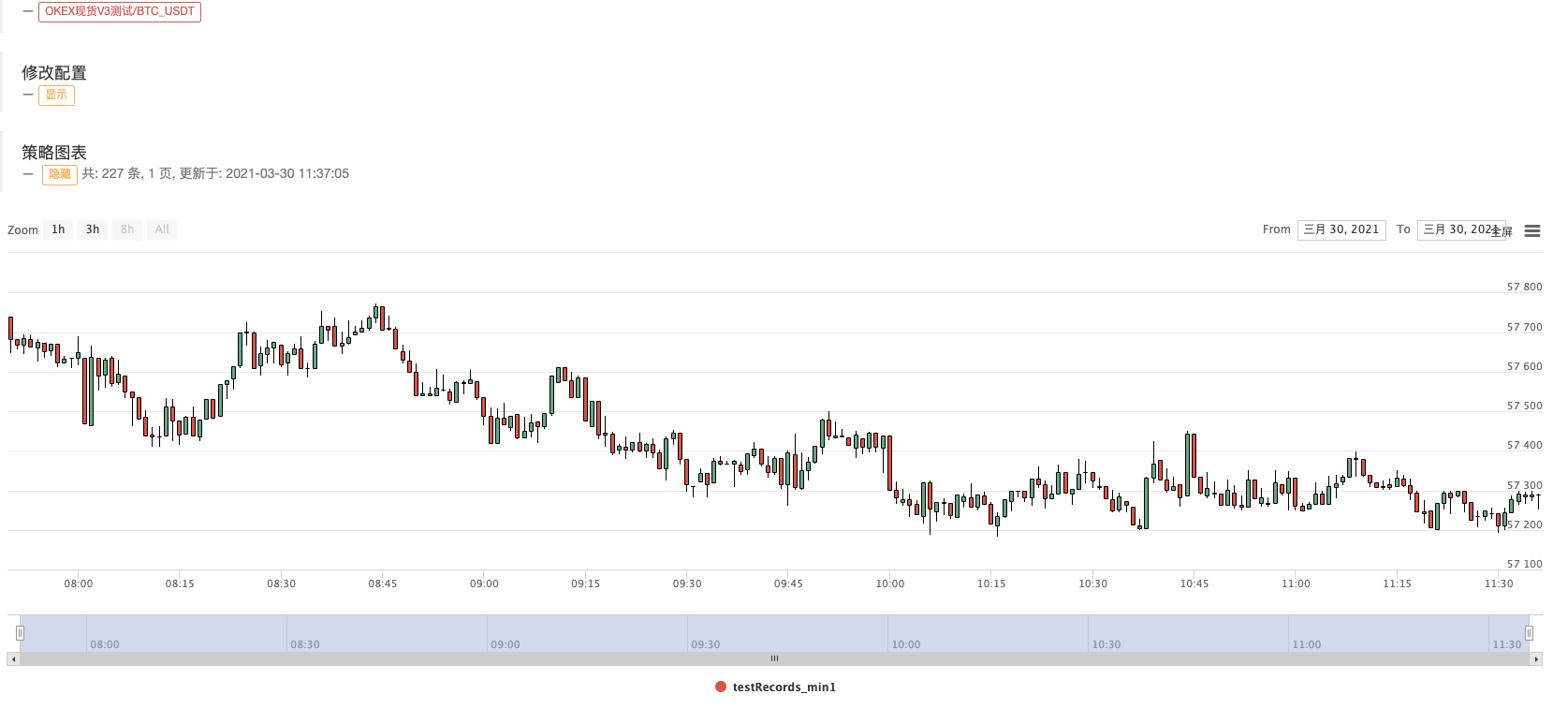

测试



对比数据



策略地址:https://www.youquant.com/strategy/267223
